01/2023.

THE SOLUTION TO THE CREEPAGE DISTANCE LOSS IN SUSPENSION-ALIGNMENT CHAINS 24-36 kV. WITH SECURED DISTANCE > 0.85 m.

Main Features

• Dielectric Function Fin + AntiDejection Protection.
• Protection of the line from bird droppings.
• Single-body insulator. Greater rigidity.
• Voltage ratings from 36 kV to 132 kV.
• Better performance in high pollution areas: Pollution level «e».
• Continuous HTV silicone coating.
• Hc2 waterproof silicone. Repels moisture accumulation.
• High mechanical efficiency fiberglass core ERC of 70 kN – 120 kN.



Standards UNE 60060-1:2012, UNE-EN 61109:2010.

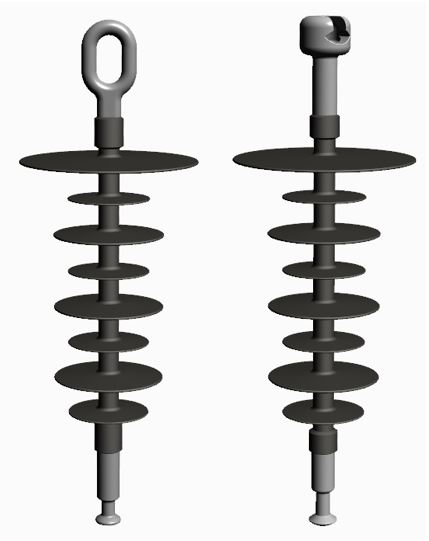

The CAD36EADPGS and CAD36SADPGS chains provide a distance greater than 0.85 m from the conductor to the anchor shackle on the cross arm, as required by the most restrictive current regulations in Suspension/Alignment Chains.
